Description
High Quality and Cost-effective 9/125 Micron Single Mode Fiber Optic Cable
The 9/125 micron single mode fiber optic cable is suitable for enterprise network, telecom room, server farms, cloud storage networks, and any place fiber jumper cables are needed. It meets RoHS compliant, and cable is optically tested for insertion loss to ensure high quality.
QIALAN also provides a full set of OEM services, such as fiber connector, length, color, fiber grade, specification, material, package etc.
| Connector | customized | Jacket OD | 2.0mm |
| Fiber Type | 9/125μm | Fiber Count | Duplex |
| Polish Type | UPC to UPC | Jacket Material | PVC |
| Insertion loss | ≤0.3dB | Attenuation at 1310 nm | 0.36 dB/km |
| Return loss | ≥50dB | Attenuation at 1550 nm | 0.22 dB/km |
| Minimum Bend Radius | 30mm | Operating temperature | -40~75°C |
| Fiber Grade | G.652.D | Polarity | A(Tx) to B(Rx) |
Quality Certification
Quality and standards are the foundation of QIALAN. We are dedicated to providing customers with the outstanding, standards-compliant products and services.
All cargoes could be shipped along with certificate copy if needed.
Product Highlights
Industry Standard Flammability Rating OFNR (Riser) Jacket Fiber Optic Cable
The industry standard duplex fiber connector meets EIA/TIA 604-2 with ceramic ferrule for high speed cabling networks.
-
- Zirconia Ceramic Ferrule Optimum IL and RL
-
- 2.0mm Cable Boot, Provides Maximum Protection
-
- Printing helps clarify and recognize different cables

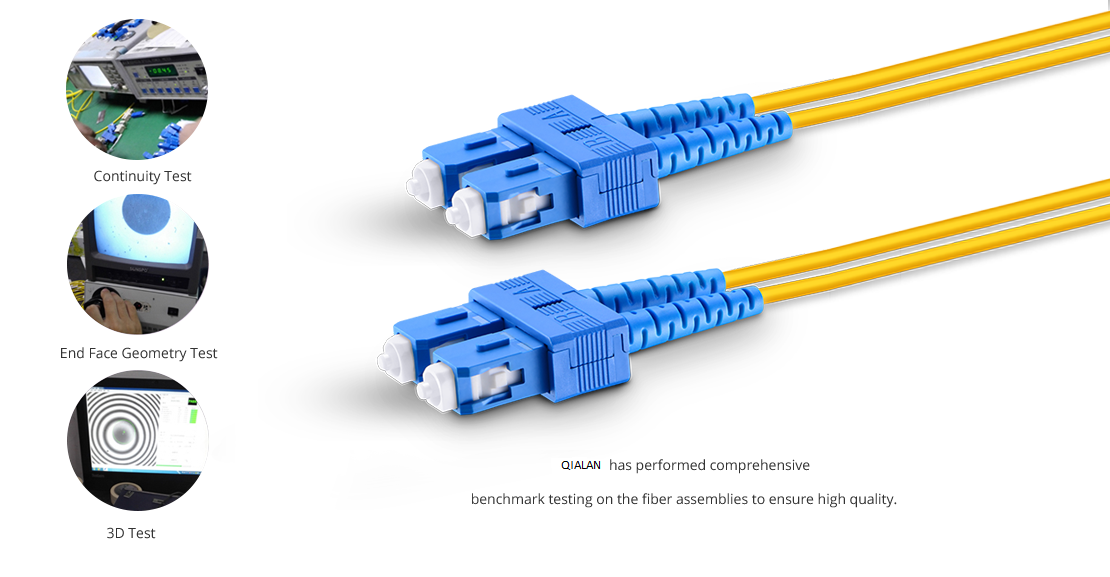

High Quality Fiber Optic Cable Guarantee
